Suspension: Front & Rear Independent Double A-Arm
25” Maxxis Tires
Adjustable Tilt Steering Wheel
Rear Cargo Box with Rubber Box Mat
Storage
ARGO_MY24_Brochure_Recreation_English.pdf
.png)
- Monday 8:30 AM - 5:30 PM
- Tuesday 8:30 AM - 5:30 PM
- Wednesday 8:30 AM - 5:30 PM
- Thursday 8:30 AM - 5:30 PM
- Friday 8:30 AM - 5:30 PM
- Saturday 9:00 AM – 2:00 PM
- Sunday Closed
Stock #
AU0118

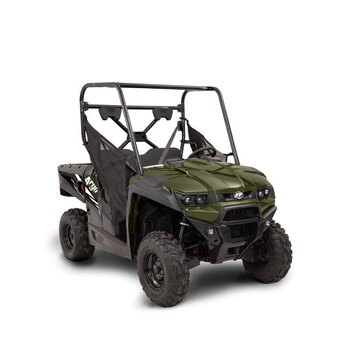

2024 Argo MAGNUM XF 500
In Stock
Dealer Price
$14,799 CAD
Overview
Specifications
features
brochures
Documents
YOUR LIST IS ENDLESS.We get it. Doing hard work, well, is hard work. That’s why you need to experience the ARGO Magnum XF 500 to get things done faster. At ARGO, we combine fun and function with our premium side-by-sides. The fun starts with the dependable 443cc liquid-cooled EFI engine for plenty of performance and is anchored by the automatic CV transmission with engine braking for a smooth, safe ride. |
Model
MAGNUM XF
Category Name
UTV - Side x Side
Year
2024
Sale Type
New
Manufacturer
Argo
Vin
RFBUR23A3RB120118
Color
GREEN
Engine Size
443CC
Class
U
CodeName
MAGNUM XF 500
Model Code
MAGNUM XF 500
Titlestatus
CLEAN
Unitcondition
EXCELLENT
HITCH
STANDARD/2" RECEIVER
WIDTH
56.7 IN (1,440 MM)
WINCH
ACCESSORY
HEIGHT
72.8 IN (1,850 MM)
LENGTH
106.3 IN (2,700 MM)
BATTERY
MF 18AH
STORAGE
UNDERHOOD, UNDERSEAT, TAILGATE, GLOVE BOX
IGNITION
ECU
LIGHTING
DUAL 12V 35 W HIGH/LOW BEAM DUAL WITH BRAKE LIGHT
WHEEL RIM
STEEL
WHEELBASE
72 IN (1,829 MM)
DRY WEIGHT
1,025 LBS (465 KG)
Model Code
MAGNUM XF 500
SKID PLATE
PLASTIC
WET WEIGHT
1,080 LBS (490 KG)
12V CHARGER
STANDARD
FINAL DRIVE
SHAFT DRIVE
FUEL SYSTEM
EFI
REAR BUMPER
ACCESSORY
SEAT HEIGHT
32.9 IN (836MM)
BRAKE - REAR
HYDRAULIC DISC
DISPLACEMENT
443CC
FRONT BUMPER
ACCESSORY
START METHOD
ELECTRIC START
TORAGE FRONT
FENDER X2
BORE X STROKE
89 X 71.2 MM
BRAKE - FRONT
DUAL HYDRAULIC DISC
ENGINE STROKE
4-STROKE
COOLING SYSTEM
LIQUID
DAYLIGHT STRIP
RUNNING LIGHTS
GEAR SELECTION
H/L/N/R/P
RIDER CAPACITY
2
INSTRUMENTATION
DIGITAL INSTRUMENT PANEL WITH ODOMETER, SPEEDMETER, TRIPMETER, RPM, TRANSMISSION POSITION, 2WD/4WD/LOCK INDICATOR, APS INDICATOR, FUEL GAUGE, TEMPERATURE, LOW-BATTERY, HIGH BEAM LIGHT AND CHECK ENGINE LIGHTS
TOWING CAPACITY
1,200 LBS (545.5 KG)
GROUND CLEARANCE
10 IN (254 MM)
OVER RIDE BUTTON
STANDARD
REAR BOX STORAGE
441 LB (200 KG)
TIRE SIZE (REAR)
AT25X10-12 (MAXXIS)
COMPRESSION RATIO
9.1:1
DRIVE SYSTEM TYPE
ELECTRONIC 2WD/ 4WD /LOCK
FRONT BRUSH GUARD
ACCESSORY
SUSPENSION - REAR
INDEPENDENT DOUBLE A-ARM
TIRE SIZE (FRONT)
AT25X8-12 (MAXXIS)
TRANSMISSION TYPE
CVT AUTOMATIC
FUEL TANK CAPACITY
8.5 GAL (32 L)
SUSPENSION - FRONT
INDEPENDENT DOUBLE A-ARM
VALVE CONFIGURATION
4 VALVE
CYLINDER ARRANGEMENT
SOHC SINGLE-CYLINDER
DIFFERENTIAL FUNCTION
FRONT DIFFERENTIAL
SUSPENSION TRAVEL - REAR
6.8 IN (172 MM)
SUSPENSION TRAVEL - FRONT
6.9 IN (176 MM)
ENGINE BRAKING SYSTEM (EBS)
STANDARD
Features
|
|
|
|
|
XF 500 ENGINE
|
INSTRUMENTATION
|
HITCH & TOWING CAPACITY
|
Brochures
| Name | Link |
| Brochures | Download |
Model
MAGNUM XF
Category Name
UTV - Side x Side
Year
2024
Sale Type
New
Manufacturer
Argo
Vin
RFBUR23A3RB120118
Quantity
1
Color
GREEN
Engine Size
443CC
